Delete Faces command
Delete Faces command
Note:
To access the Simplify Model environment, on the Tools tab, in the Model group, choose Simplify.
Note:
To access the Flatten Model environment, on the Tools tab, in the Model group, choose Flat Pattern.
Deletes faces from the model.
You can use this command to do the following:
To remove faces from a design model to make design changes.
To simplify a model in the Simplify Model environment so that it processes faster when used in an assembly.
To remove faces from a sheet metal part when working in the Flat pattern environment.
To remove faces from a construction body.

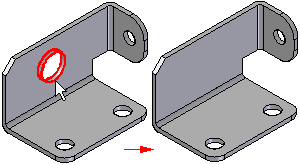

When you delete a face on a part body, which must always be a solid body, the gap created by the deleted surface is automatically closed.

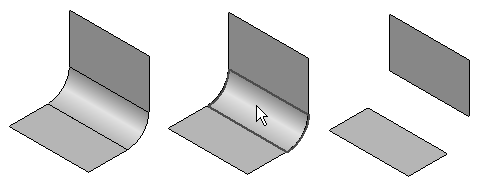

When you delete a face on a construction body, which is not required to be a solid body, you can specify whether the gap is closed or left open using the Heal option on the command bar.
When you clear the Heal option, the gap is not closed and you can construct another surface to close the gap. This can be useful when working with foreign data which cannot be converted into a solid body when you import it.
