The 3D Steering Wheel has been simplified in Solid Edge ST6. All 3 axes are displayed.
The Steering Wheel in the previous version of Solid Edge is shown below.
The Solid Edge ST6 Steering Wheel is shown below.

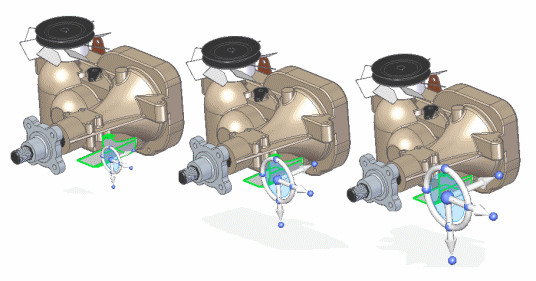

In ST6, the Steering Wheel display size can be set in the View tab of Solid Edge options. When using finer screen resolutions, the large display can make the steering wheel easier to see and manipulate. The options are small, medium and large.
