Split Draft

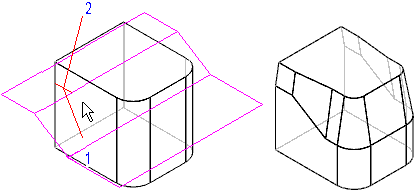

You can apply two draft angles at once with the split draft option. The two angles are applied in opposite directions using the same geometry to define the pivot location. In this example, a parting surface was used to define the pivot location. A draft angle of zero was defined for the geometry that lies below the parting surface.
