Add Draft command

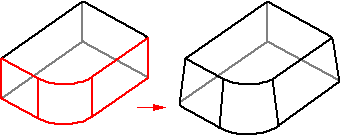

Adds a draft angle to one or more part faces.

To construct a simple draft feature, you first define a draft plane, then select the faces you want to draft, and finally you define the draft angle and direction.
